Characteristics of the TR Series Mud Cleaner Structure

TR series mud cleaner mainly has the following characteristics in design.

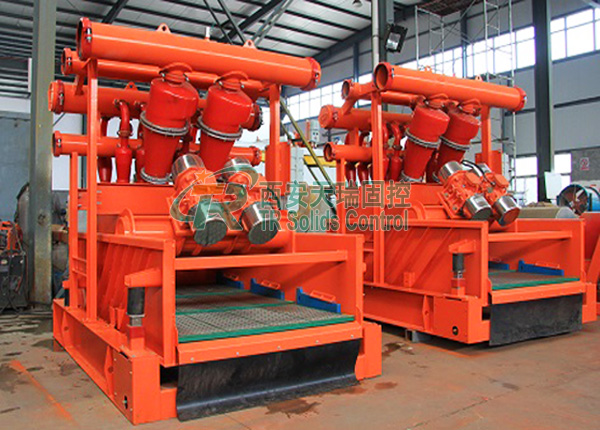

Imitation SWACO Mud Cleaner


1.Bottom Flow of Cyclone can be Adjusted.
When the bottom flow of cyclone is too dry or too large, it can be adjusted by replacing the nozzle with larger diameter or smaller diameter.
2.The service life is improved.
Because the solid phase in drilling fluid will cause wear and tear to the cyclone and pipe fittings during the flowing process, and shorten the service life, in order to solve this problem, we take measures to improve the wear resistance of the relevant components to extend their service life.
3.Flexible in Use
The mud cleaner can be used in combination of desander + shale shaker, desilter + shale shaker, or desander+ desilter+ shale shaker, or directly as a shale shaker.
4.Save Installation Space.
Mud cleaner is a kind of equipment which combines three kinds of equipments: desander,  desilter and shale shaker. The structure is compact and reasonable, and the space of tank surface is saved.
Imitation SWACO Mud Cleaner
