TR series  mud  cleaner mainly has the following characteristics in design. 1. B ottom F low of C yclone can be A djusted. When the bottom  flow  of cyclone is too dry or too large, it can be adjusted by replacing the nozzle with larger diameter or smaller diameter. 2. The service life is improved. Because the solid phase in drilling fluid will cause wear and tear to the cyclone and pipe fittings during the flowing process, and shorten the service life, in order to solve this problem, we take measures to improve the wear resistance of the relevant components to extend their service life. 3. Flexible  in  U se The mud cleaner can be used in combination of desander + shale shaker, desilter + shale shaker, or desander+ desilter + shale shaker, or directly as a shale shaker. 4. S ave I nstallation S pace. Mud cleaner is a kind of equipment which combines three kind s  of equipments: desander,  desilter and shale shaker. The structure is compact and reasonable, and th

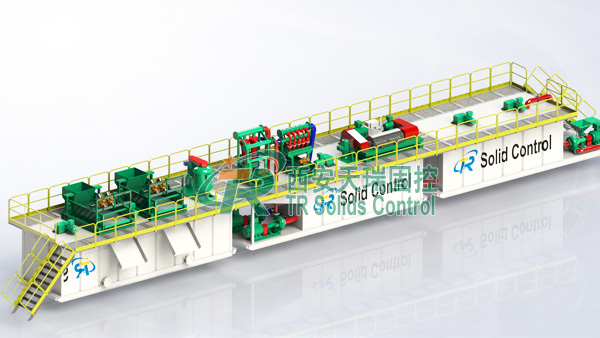

Petroleum solid control system mainly controls and separates the solids of oil drilling fluids, which can make drilling fluids recycled, also known as mud purification system. Petroleum solid control system mainly controls and separates the solids of oil drilling fluids, which can make drilling fluids recycled, also known as mud purification system. It is suitable for the drilling process of 2000-7000m oil wells. The oil solid control system consists of three to seven modular combined tanks. A new conical bottom structure is adopted for the bottom of the purifying tank, and a mud mixing system is used for the edge of the tank, which is not easy to sink. The tank and tank of the whole circulation system can be separated and connected to meet the requirements of drilling operation. The bottom valve of the suction manifold is flexible to open and reliable to seal after closing. The whole circulation system is equipped with five-level purification equipment, vibration screen, desil

YZ Submersible pump Potential fault and solving        Fault  Reason Solution Water can not be pumped out with pointer of pressure gauge tempestuously flouncing. 1. Water exit has been blocked. 2. Air leakage is happening to pipeline and meters. 1. Have the silt discharged. 2.Have the air leakage location screwed down or blocked. The pump can not pump out water. 1.Water-in mouth of the pump has been higher than liquid level. 2. Rotating direction is incorrect. 1.Have the liquid level raised or decrease the pump height. 2.Inspect the rotating direction of the motor. The water exit is indicated having pressure by the pressure gauge but no water comes out. 1.The resistance of water output is too big. 2. The impeller is blocked. 3. Rotating speed is not enough. 1. Have the pipeline checked. 2. Have the impeller washed. 3. Have the rotating speed increased. Flux is too low. 1.The pump is blocked. 2.The rotating speed is not enough. 3. The impeller is too much blocked 1.Have the pu

Drilling fluid shale shaker is a first-class solid control equipment used in drilling mud purification system. It adopts imported excitation motor. It is suitable for single, double or triple connection of oil drilling fluid purification. At the same time, drilling fluid shale shaker can also be used for bottom-flow shaker of mud cleaner. Drilling fluid shaker has high vibration intensity, large screen area, adjustable screen box angle, compact structure and excellent performance. At present, drilling fluid shaker is widely used in oil drilling, trenchless horizontal directional crossing, coalbed methane drilling, shale gas drilling, river mud environmental protection and other mud purification treatment fields. Structure Drilling fluid shaker is mainly composed of base, screen box, screen mesh, mud logging tank, excitation motor, shock absorber spring, control switch, adjusting device and so on. Screen box: Screen box uses soft (hard) hooked screen, frame screen, bolt tension
